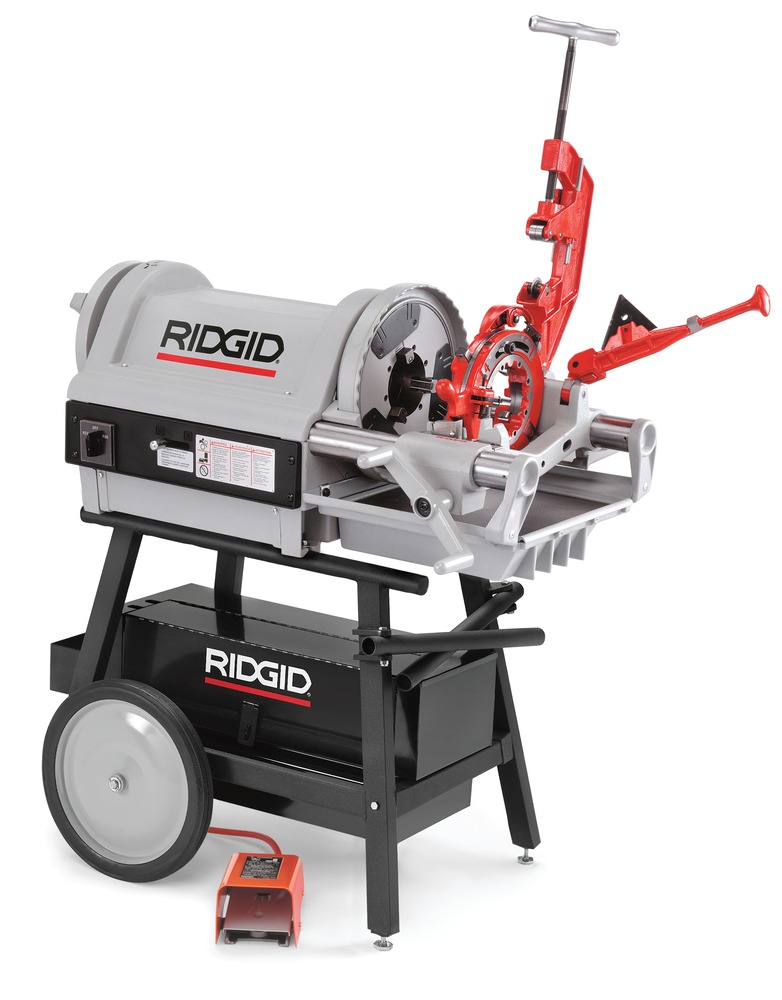

RIDGID Model 1224 Power Threading Machine ½” – 4″

RIDGID Model 1224 Power Threading Machine ½” – 4″

Price To Be Confirmed

£0.00

The Model 1224 Pipe Threader threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.

Specification

  • Nominal Pipe Capacity:
  • 1/4″–2″ (6mm–50mm) @ 36 RPM
  • 2-1/2″–4″ (65mm–100mm) @ 12 RPM
  • 4″–6″ (100mm–150mm) with 161 Geared Threader
  • Bolt Capacity:
  • 1/4″–2″ (6mm–50mm)
  • Motor Control:
  • Reverse / Off / Forward
  • Heavy-duty rotary-type switch
  • Integral foot switch
  • Gear Box:
  • Two-speed gear box with 3:1 ratio
  • Chuck:
  • Hammer-type
  • Replaceable rocker-action jaw inserts
  • Rear Centering Device:
  • Cam action
  • Oiling Pump:
  • Self-priming, gerotor-type
  • Automatic-reversing
  • Constant-flow
  • Oiling:
  • Through die head
